Drivetrain
| Transmission | |
| Clutch | Multiplate wet |
| Gearbox | 5-speed |
| Transmission Type | Chain (final drive) |
Suspension
| Front Suspension | Independent Double Wishbone |
| Rear Suspension | Independent Double Wishbone |
| Front Travel | 10.6 in (268 mm) |
| Rear Travel | 10 in (254 mm) |
| Front Shocks | Twin-tube |
| Rear Shocks | Twin-tube |
Brakes
| Front Braking System | Single disc. Hydraulic. Two-piston calipers. Optional ABS. |
| Rear Braking System | Single disc. Hydraulic. Single-piston caliper. Optional ABS. |
| Parking Brake | Park In-Transmission |
Tires
| Wheels | Aluminum |
| Front Tire | 27/9-14 |
| Rear Tire | 27/11-14 |
Dimensions
| Overall Vehicle Size | 52.6" w x 70.9" h |
| Rake / Trail | 106° / 4" |
| Wheelbase | 63.7 in (1,618 mm) |
| Seat Height | 30 in |
| Ground Clearance | 13.6 in (345 mm) |
| Bed Box Dimensions | 28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm) |
Capacities
| Fuel Capacity | 7.9 gal (29.9 L) |
| Seating Capacity | 2 |
| Hitch Type | Rear: Standard |
| Cargo System | Lock & Ride |
| Payload Capacity | 408 lbs (900 kg) |
| Box Capacity | 300 lb (136 kg) |
| Storage Capacity | 5.7 gal (21.4 L) |
| Towing Capacity | 750 lbs (1,650 kg) |
| Rack Capacity | Front: 100 lb (45 kg) / Rear: 200 lb (90 kg) |
Weights
| Dry Weight | 224 lbs |
Electronics
| Gauges | 4.5 in. digital display |
Lights & Safety
| Lighting | LED headlight with light icon and adaptive cornering light |
| Instrumentation | 10.25-Inch Color-TFT display |
| Warranty | One year. Unlimited milage. Transferable. |
| Features | Doors: Front & Rear Full Doors | Other Standard: Color Matched Seats, Premium Paint & Graphics, Color-Matched Dash & Bumper, 900-W Charging System, 6-Position Pulse Bar, Tilt Steering, Poly Sport Roof, Rockford Fosgate Stage 3 Audio, Ride Command, Rear Camera, Accent Lighting, Adjustable 4-Point Subzero Harnesses, Front Tow Loop, Front Bumper |
| Steering | Tri-Mode Dynamic Power Steering (DPS) |

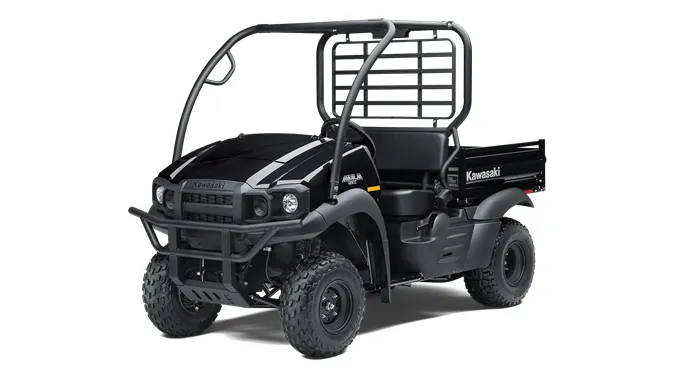

What type of fuel does a 2026 Kawasaki Mule SX 4x4 use?
A 2026 Kawasaki Mule SX 4x4 uses Gasoline.
What type of engine does the 2026 Kawasaki Mule SX 4x4 have?
The 2026 Kawasaki Mule SX 4x4 is equipped with a 4-stroke engine.
